Euro box 230 V

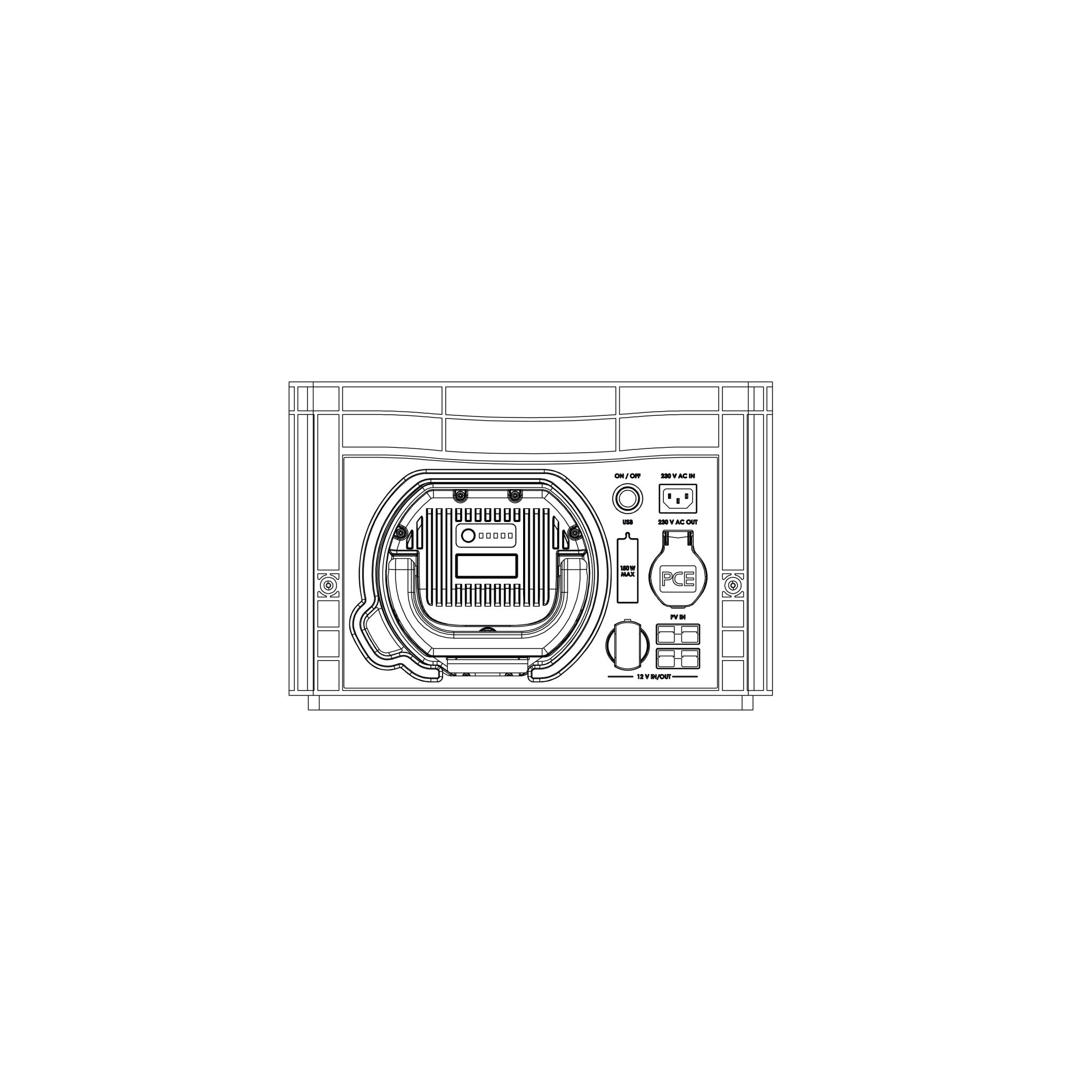

Euro box 230 V – Robust energy box for flexible use

Our 230 V Eurobox combines intelligent technology with robust construction. In a proven Eurobox format, it offers you a mobile and stable solution for the safe use of 230-volt applications – ideal for tradesmen, outdoor use, or temporary power supplies.

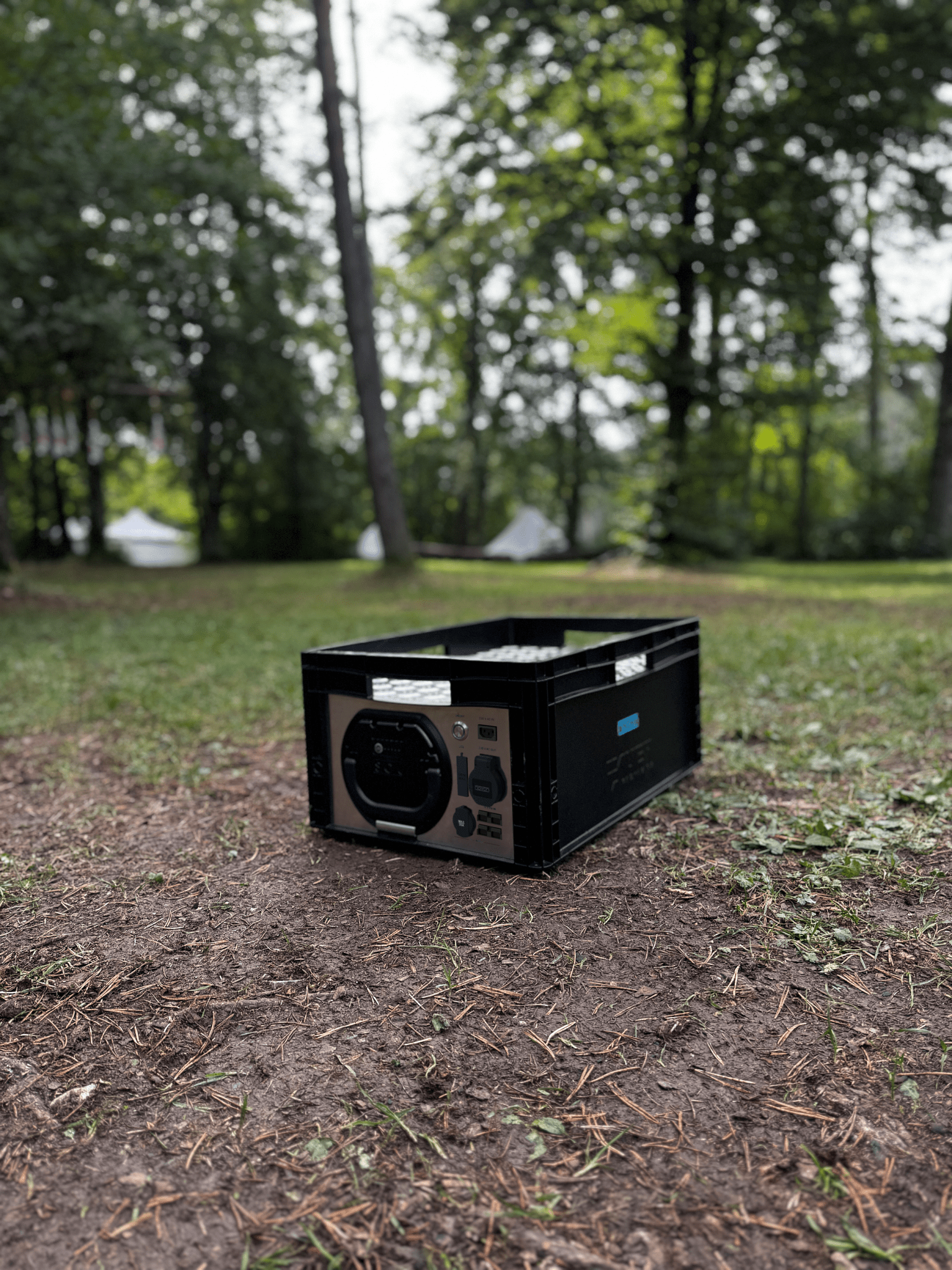

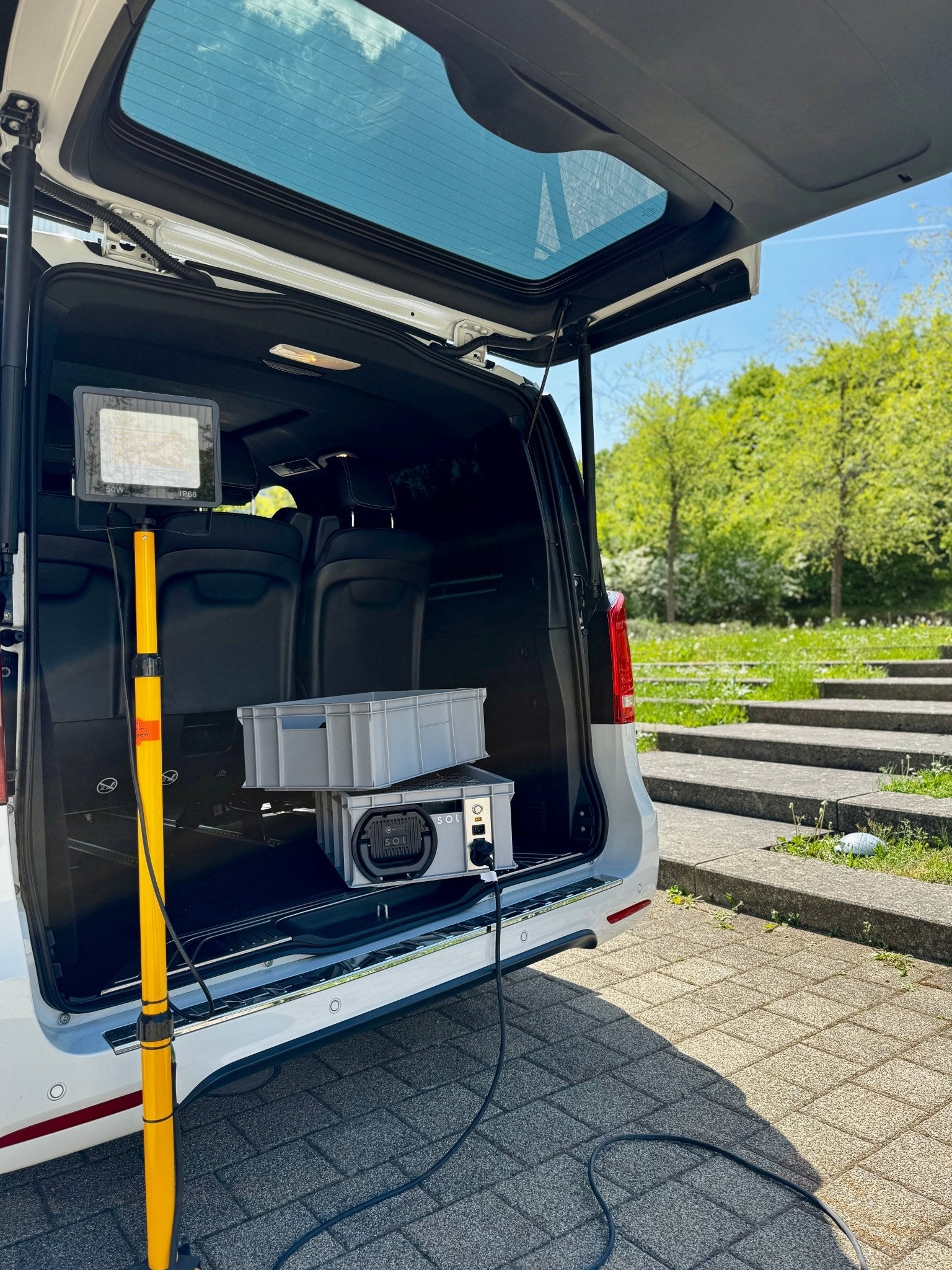

Areas of application:Workshop, construction site, events, camping, emergency power solutions.

A notice:The 230 V Eurobox is delivered ready for connection. Please observe applicable safety regulations when using electricity outdoors.

At the heart of each of our power stations is the electronics with our AMC (AI Main Controller). The AMC, like all the electronics, is our own development. Using our own electronics, we are able to reach previously unattainable performance levels while simultaneously utilizing features that are integrated into the hardware from the app and backend.

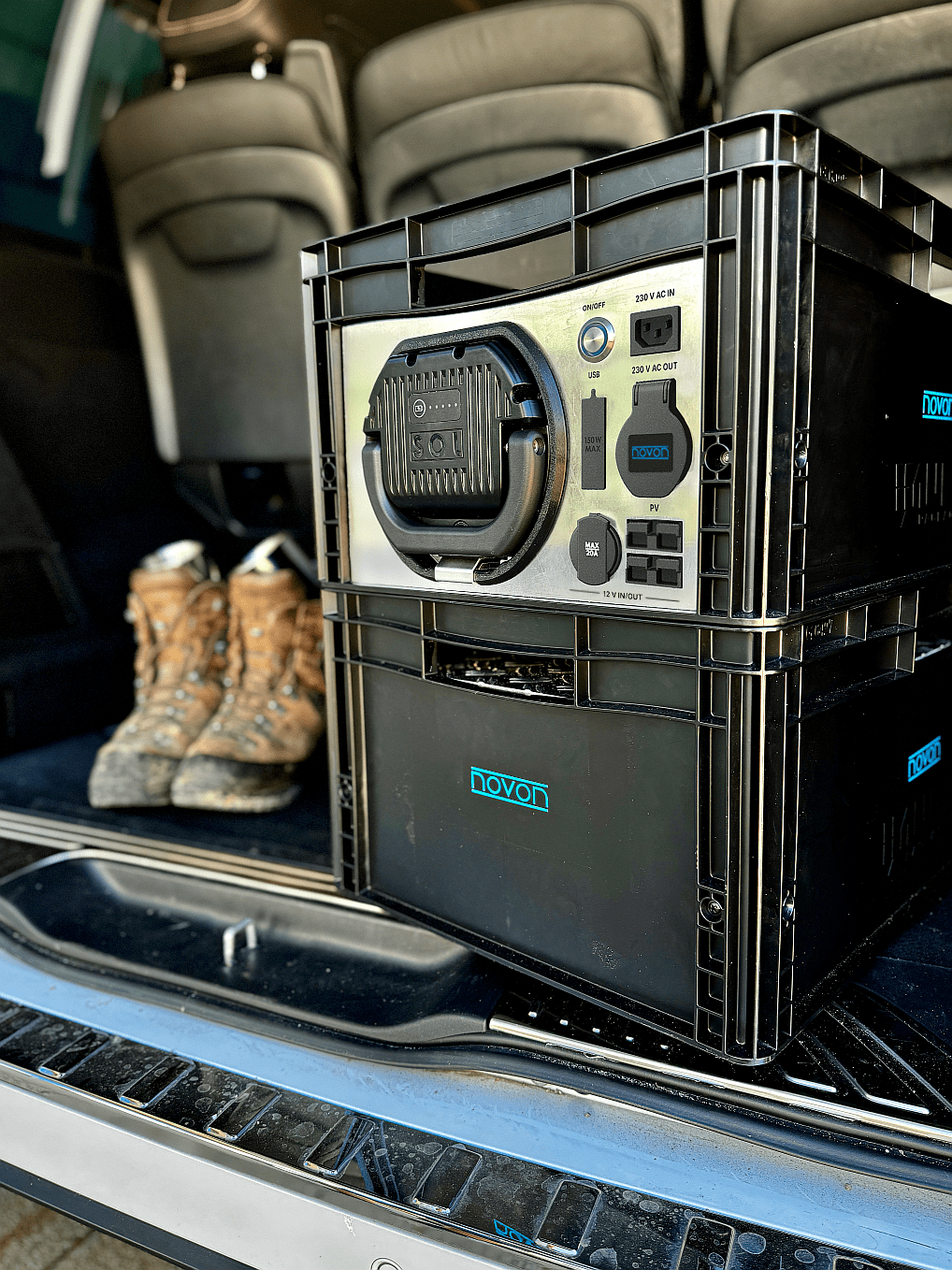

Entrances:

• 230 V mains input 600 W
• PV input with MPPT on 1 string with up to 4 modules
• Battery interface for Sol battery

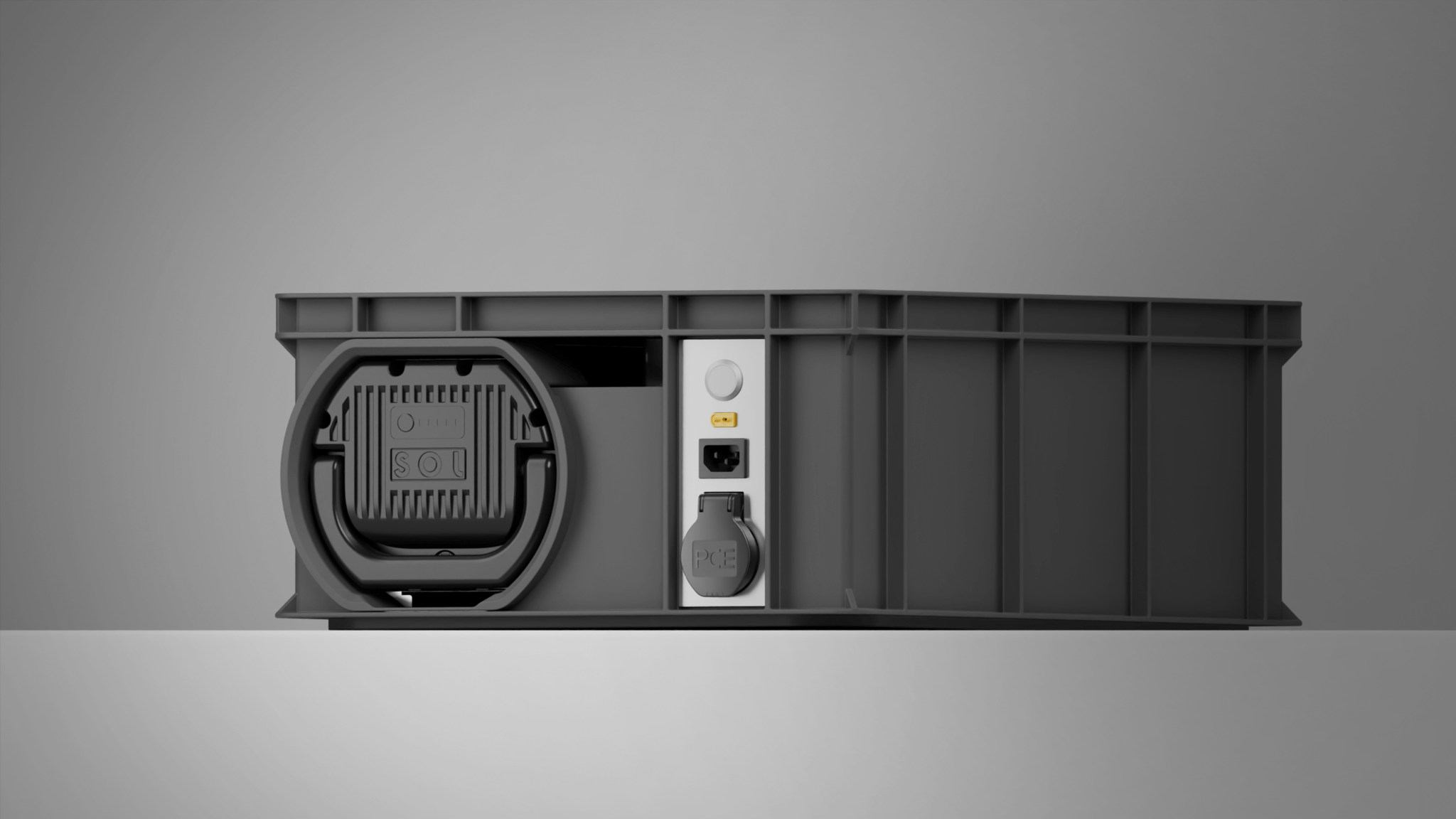

Outputs:

• 230 V Schuko socket with 2,500 W power for off-grid operation
• USB-A and USB-C Power Delivery with 100 W (optional)
• Up to 4 inductive charging slots for smartphones (optional extra)

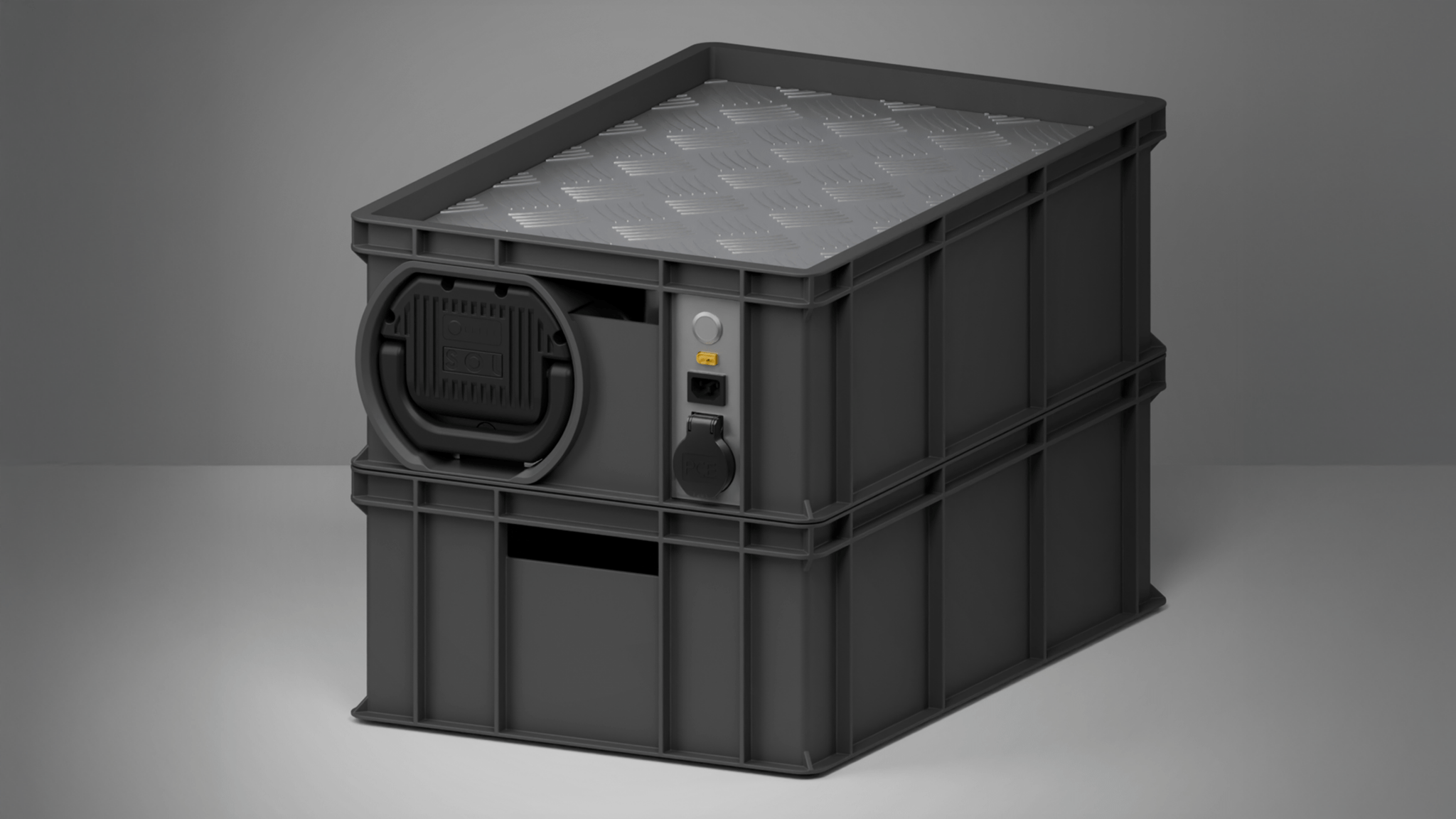

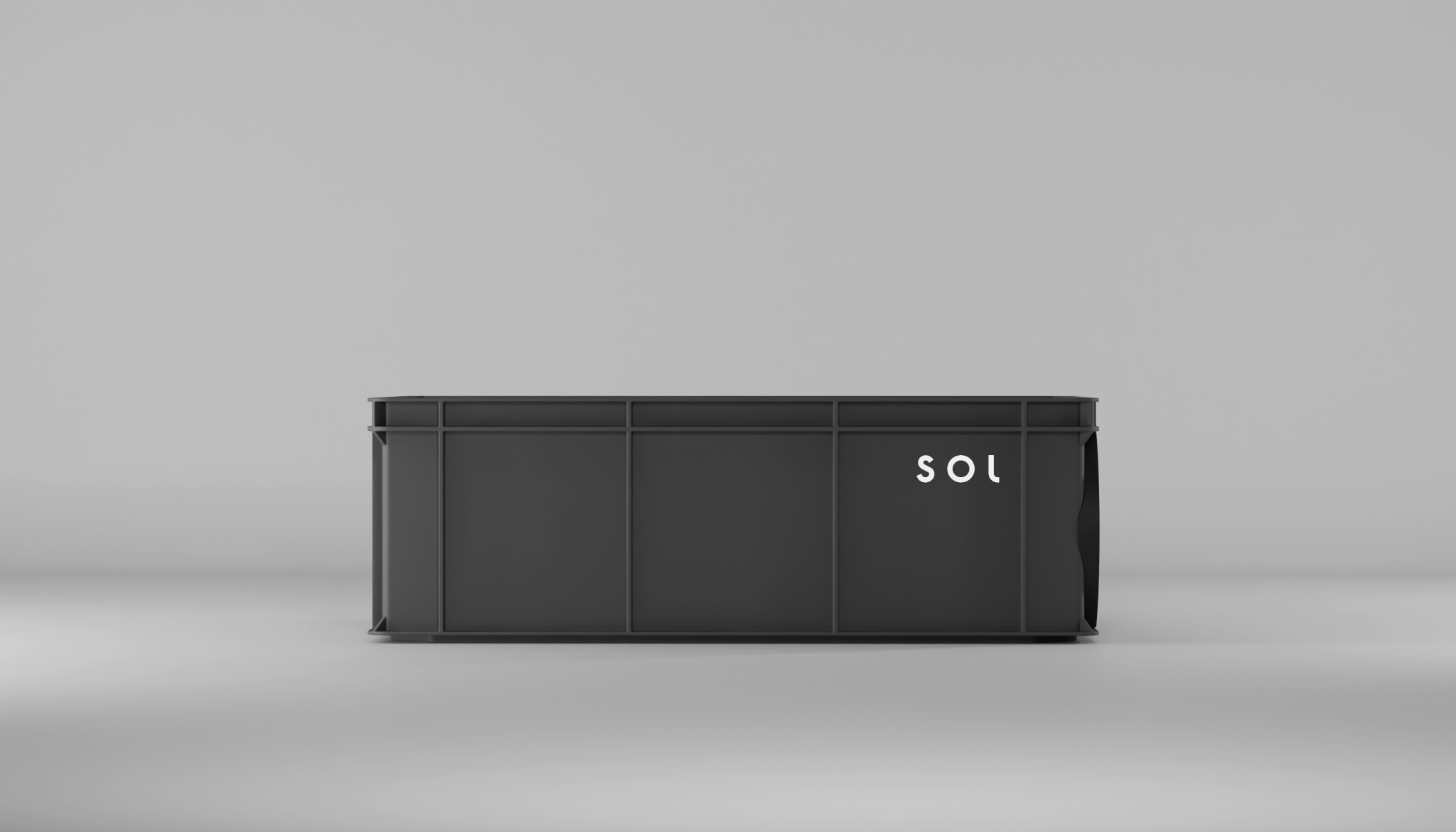

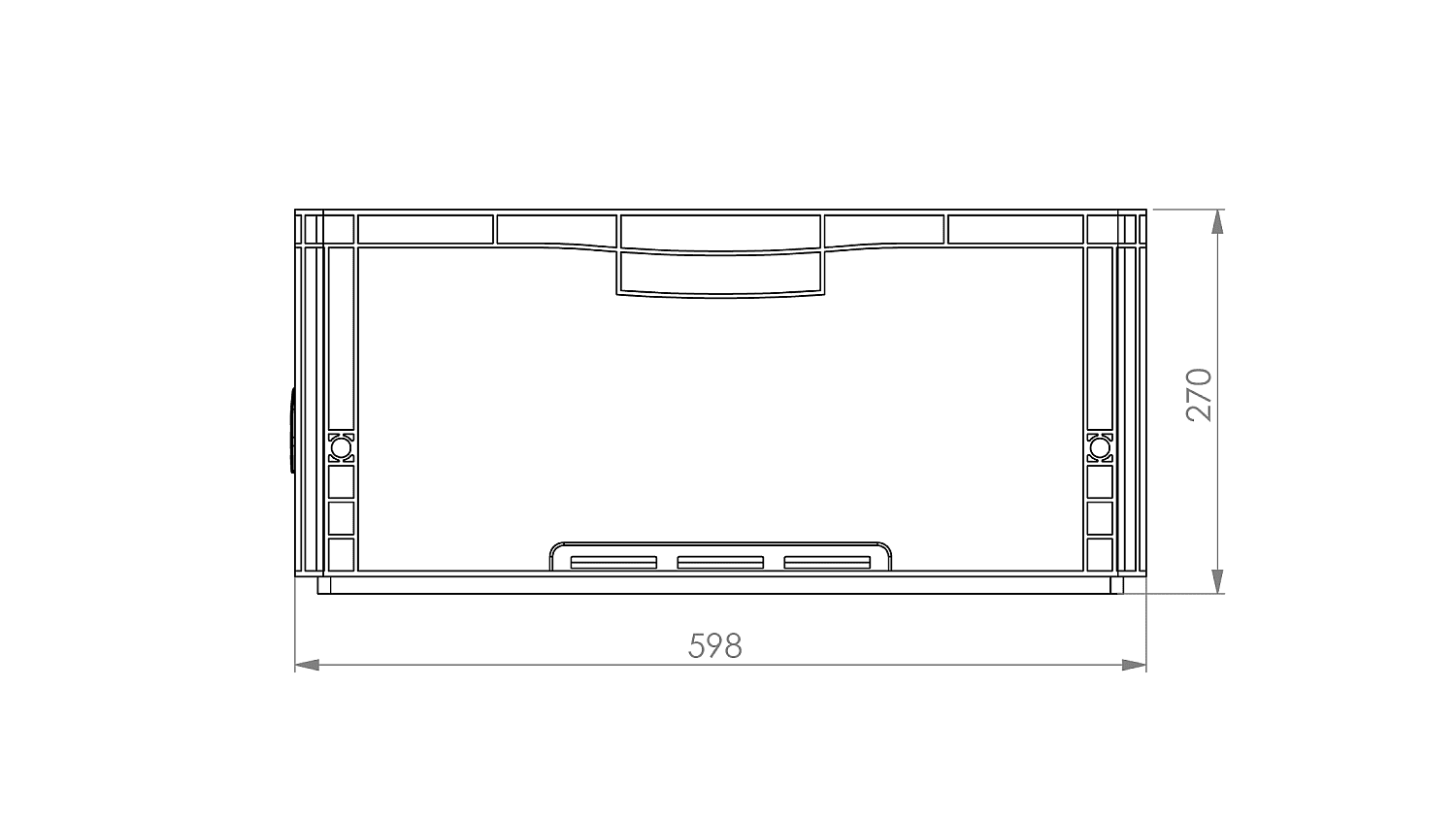

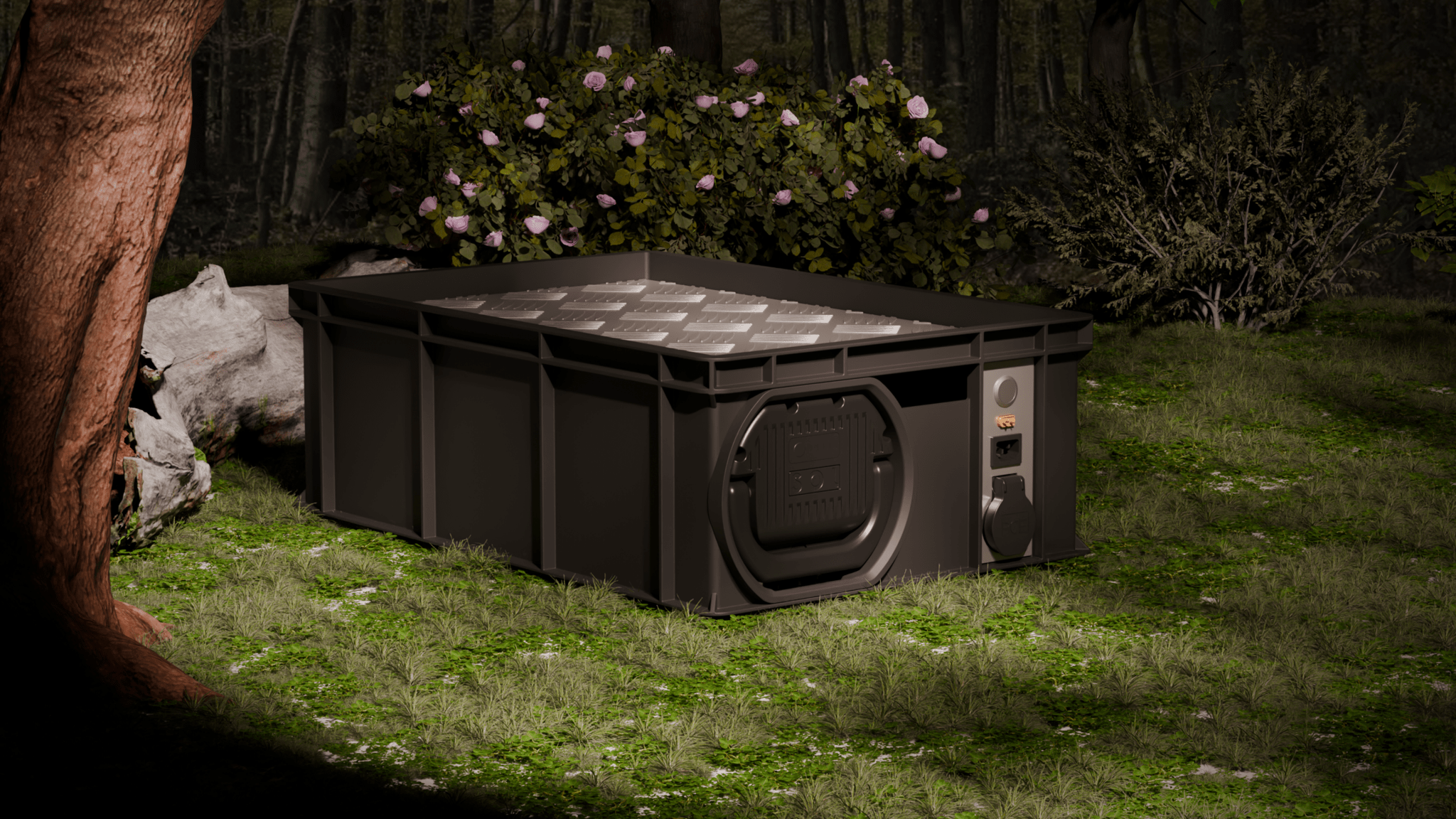

Housing:

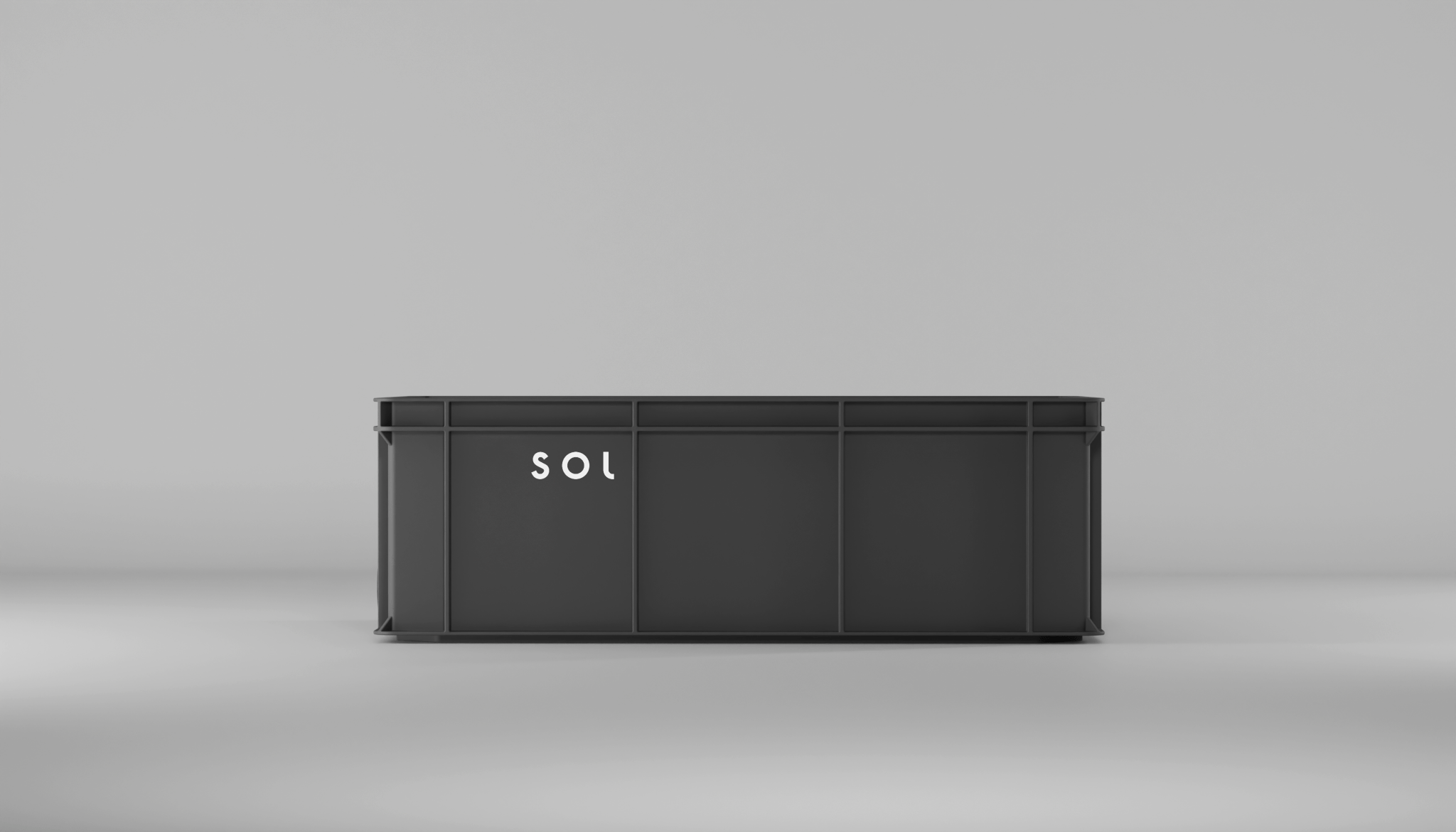

• Robust Euro crate in any color (optional extra)

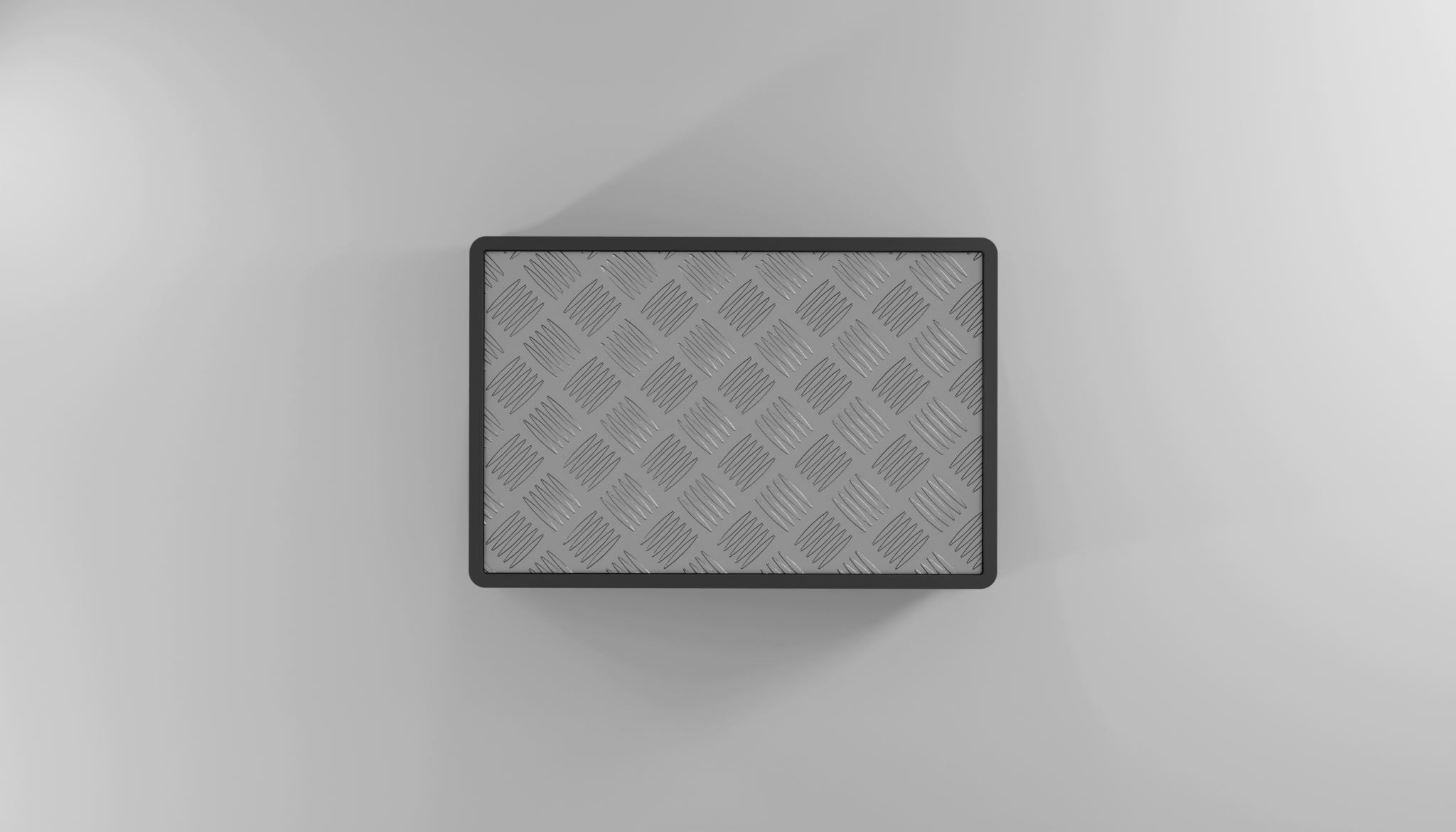

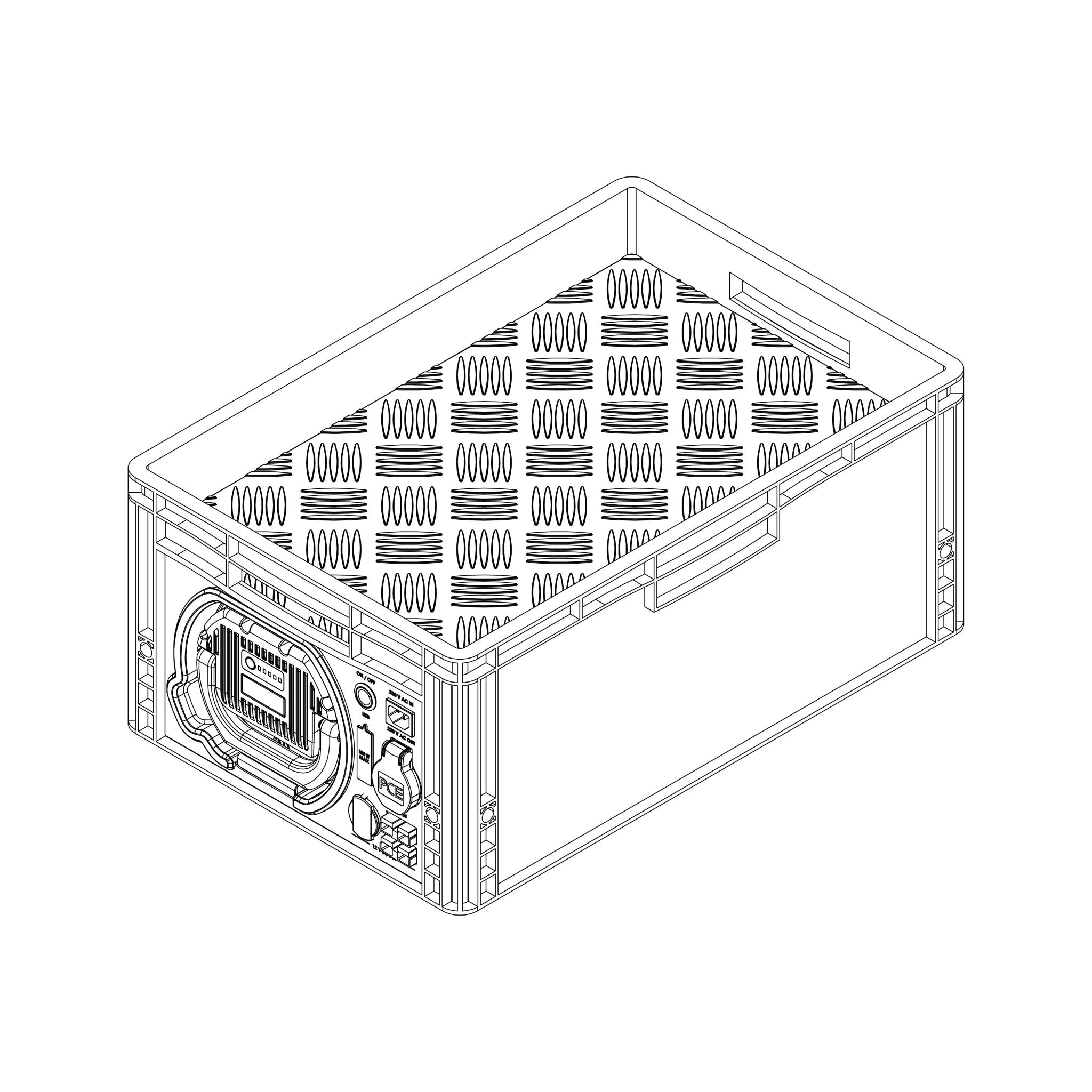

• Aluminium checker plate cover plate with 250 kg maximum surface load

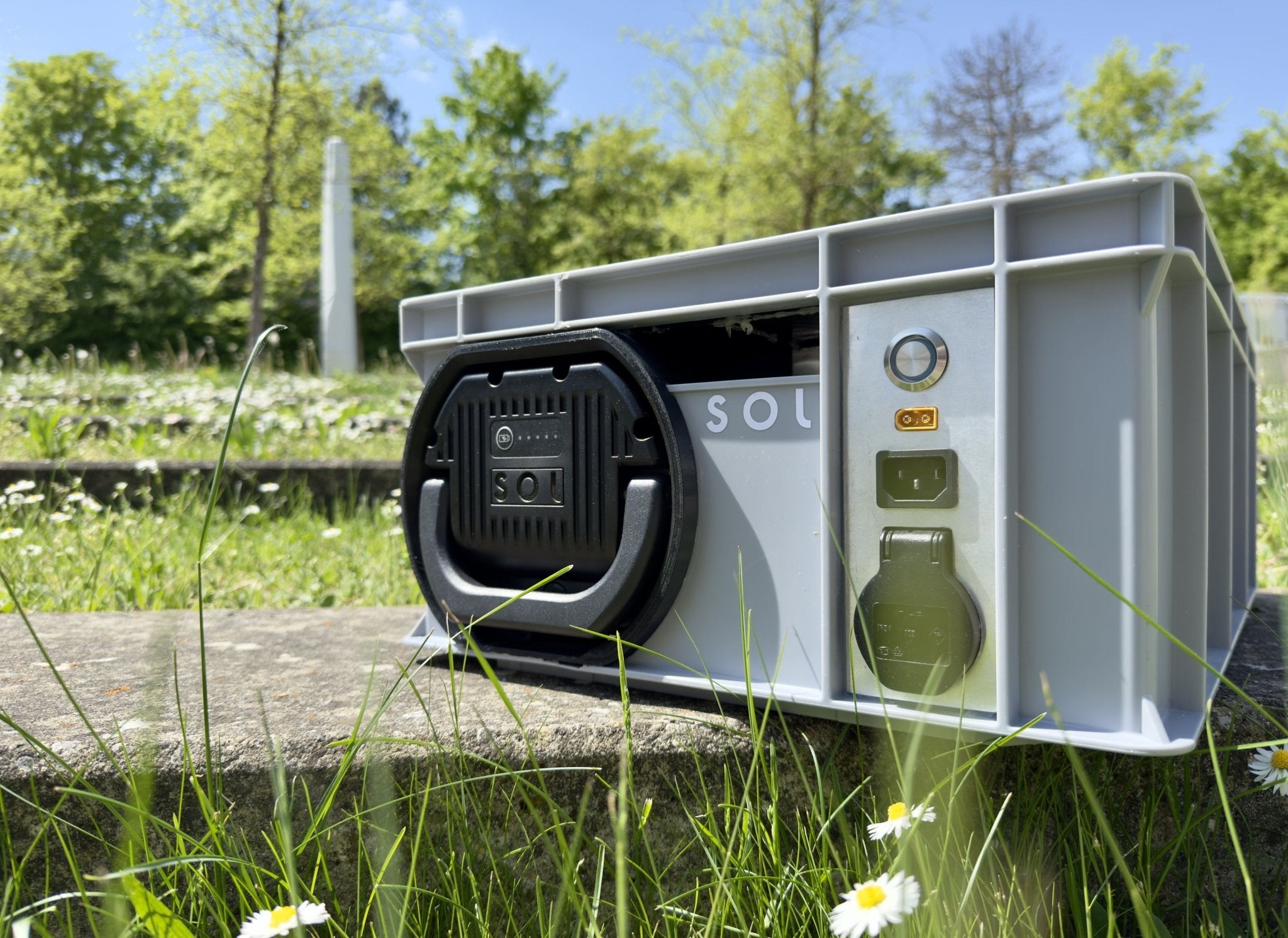

• Splash-proof Schuko socket
• Temperature range: −20 °C to +60 °C

The charger:

• The charger is integrated into the electronics
• Simply charge via cold appliance plug - Schuko 230 V AC mains
• 600 watts of power for fast battery charging

The battery:

• 2.5 kWh energy content
• More than 2,500 cycles
• Lithium ion battery
• Also fits in the Sol Pocket Rocket
• 10-year warranty

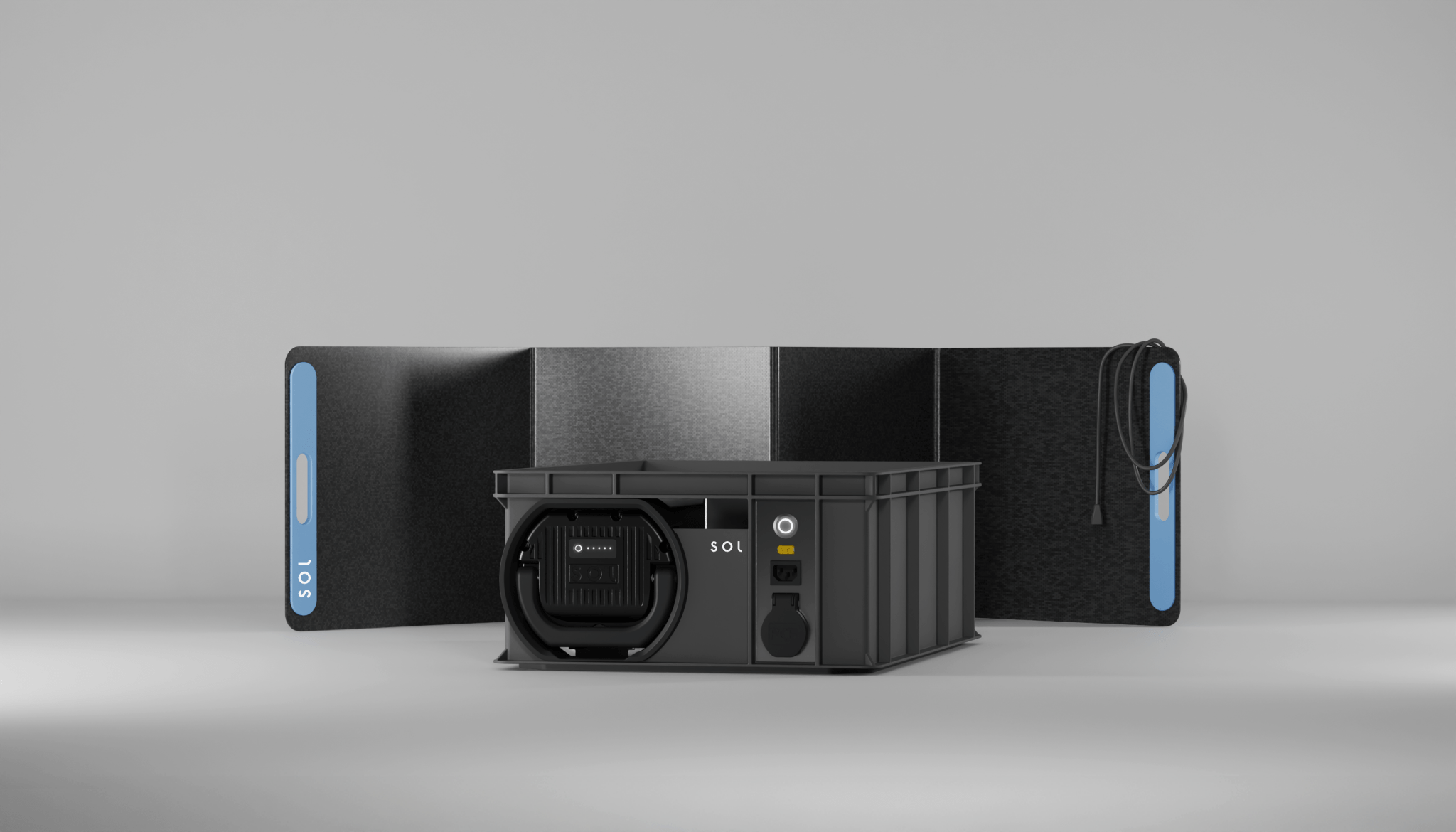

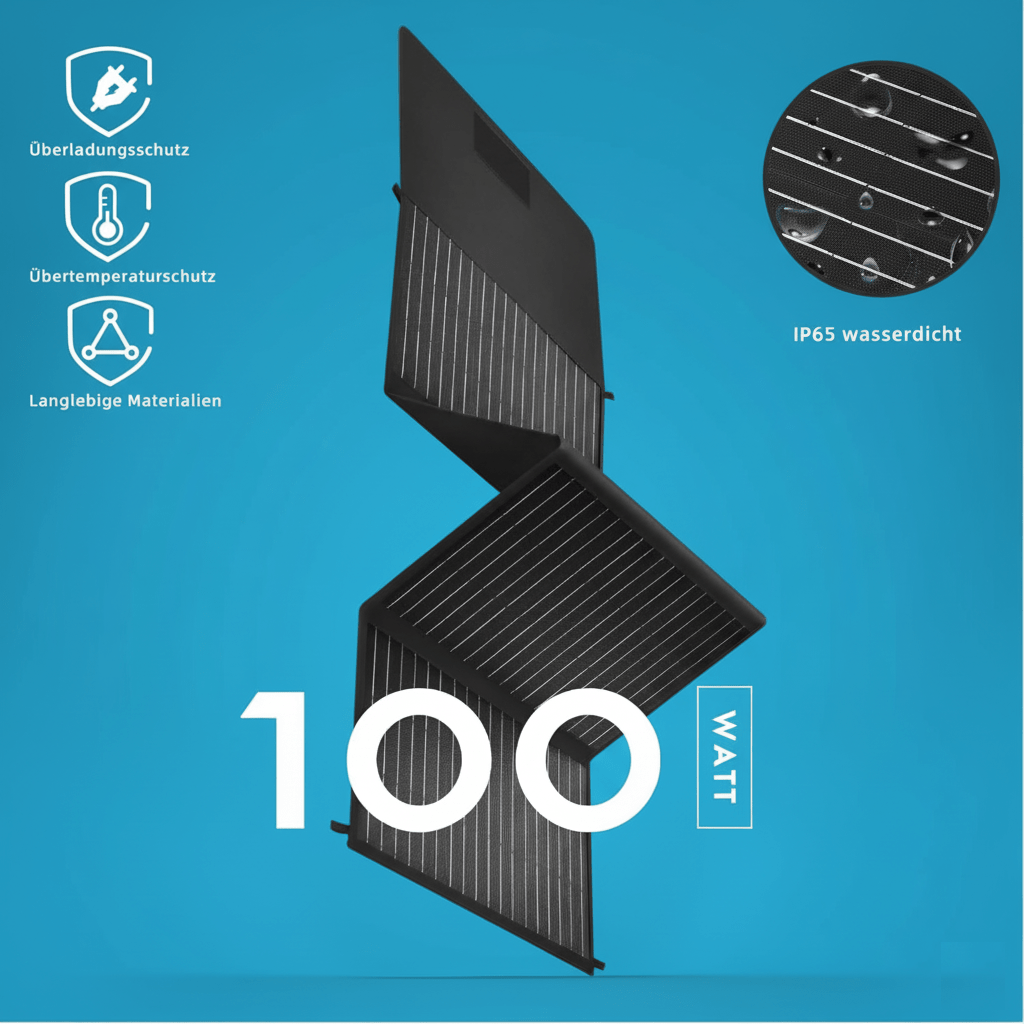

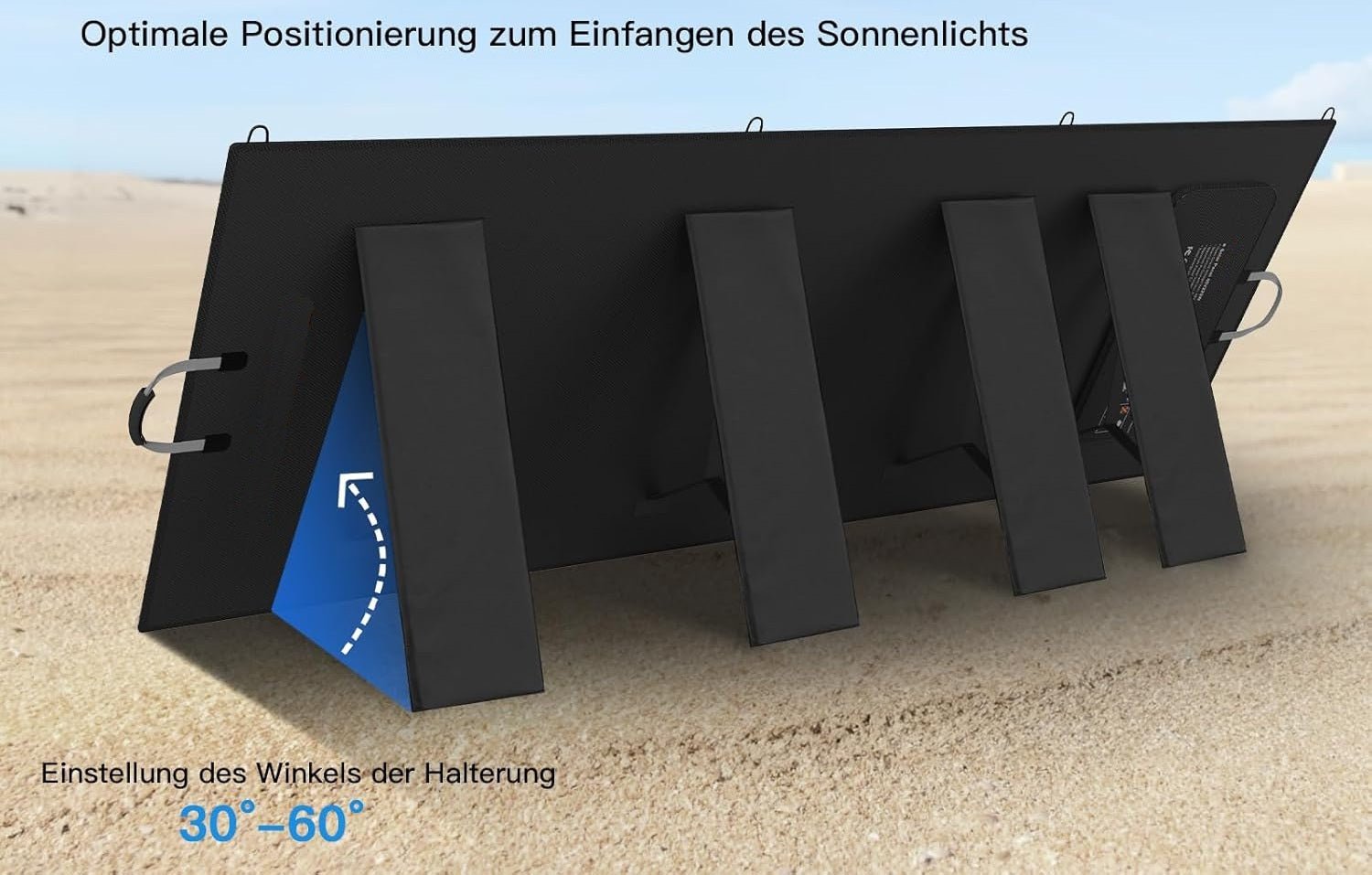

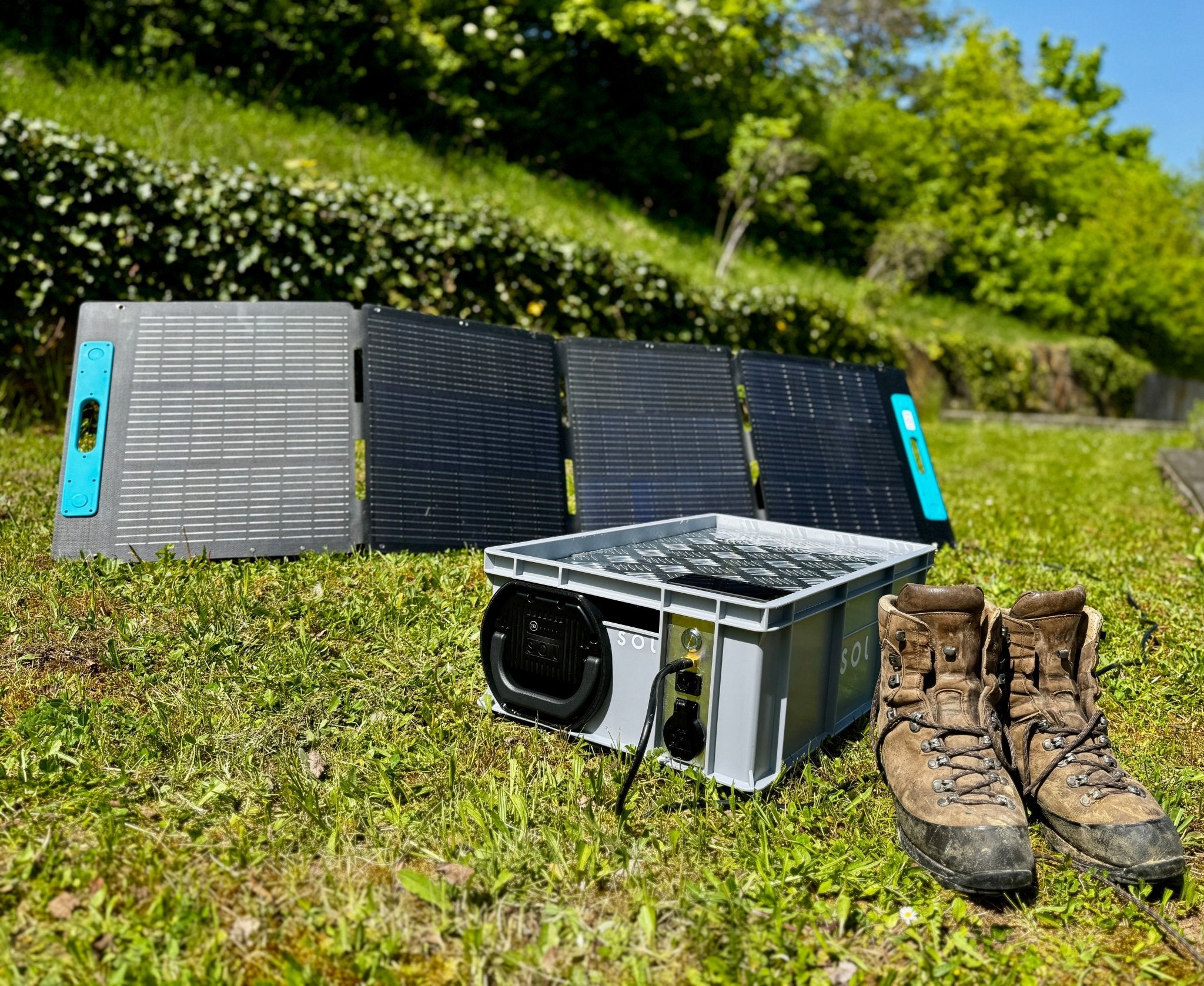

The PV module:

• Foldable PV module
• Folded it fits into the Euro box 40 x 60
• 100 watts maximum power
• Robust compact connector XT60

The cabling:

• 10 m PV cabling
• XT60 connector
• Adapter from XT60 to MC4 (optional)
• Adapter for multiple connection of PV modules (optional equipment)
